The implantation of beads into the prostate gland, also called low-dose prostate brachytherapy or permanent brachytherapy, is an effective and well-tolerated minimally invasive treatment for early-stage prostate cancer.
In this treatment, small sources of radioactive iodine-125, also known as beads, are placed inside the prostate. Each bead is 4.5 mm long and 0.8 mm in diameter and emits a certain low dose of radiation to the surrounding prostate tissue, with the beads themselves placed evenly throughout the organ. Since the radiation is mainly localized around the radioactive source, it avoids damage to adjacent organs and tissues.
Eckert & Ziegler BEBIG offers a wide range of products for low-dose prostate brachytherapy with different types of sources, treatment planning software, on-site service, a wide range of consumables and accessories, ultrasound and operating room equipment, as well as tools for calibration and analysis of implantable grains.
IsoSeed®: models of radiation sources that have proven themselves
The models are available with a gold (IsoSeed® I25.S06) or silver (IsoSeed® I25.S17plus) radiographic marker, the closed-source design of the Eckert & Ziegler BEBIG I-125 model ensures visibility in ultrasound, fluoroscopy, CT or MRI.
IsoCord® & IsoStrand® provide complete radiation protection
IsaCord® is a chain of sources containing up to 70 seeds and packed in a cassette with radiation protection.
IsoStrand® consists of 10 IsoSeed sources spaced 1.0 cm apart.
Wide range of needles and accessories
Needles for use with the Mick® TP/TPV applicator
Prostate stabilization needles
Needles for use with IsoCord® and IsoStrand®
IsoCord® and IsoStrand® implantation needles, pre-waxed
Transport tube for the IsoCord® needle loading station
Needle rack for IsoCord® and IsoStrand®
Sterilization tray for the IsoCord® needle loading station
IsoSeed®
Free placement radiation sources for use with the Mick® TP/TPV applicator
Radiation source implantation technology allows for real-time adjustment of seed placement during implantation based on changes in prostate size and position. IsoSeed® is a free radiation source for use with the Mick® TP/TPV applicator, available in two closed source models.

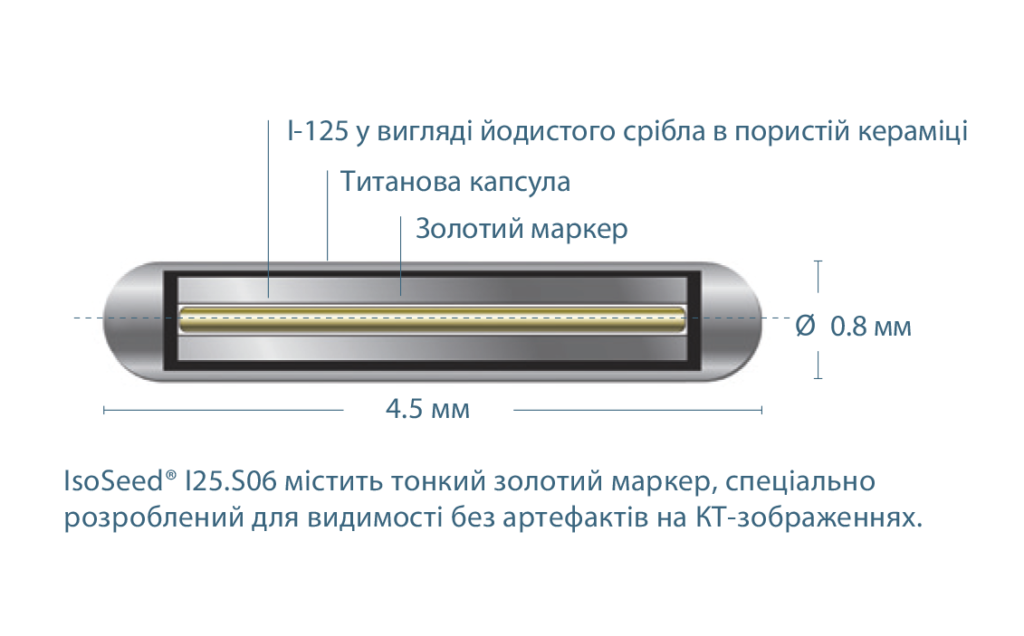

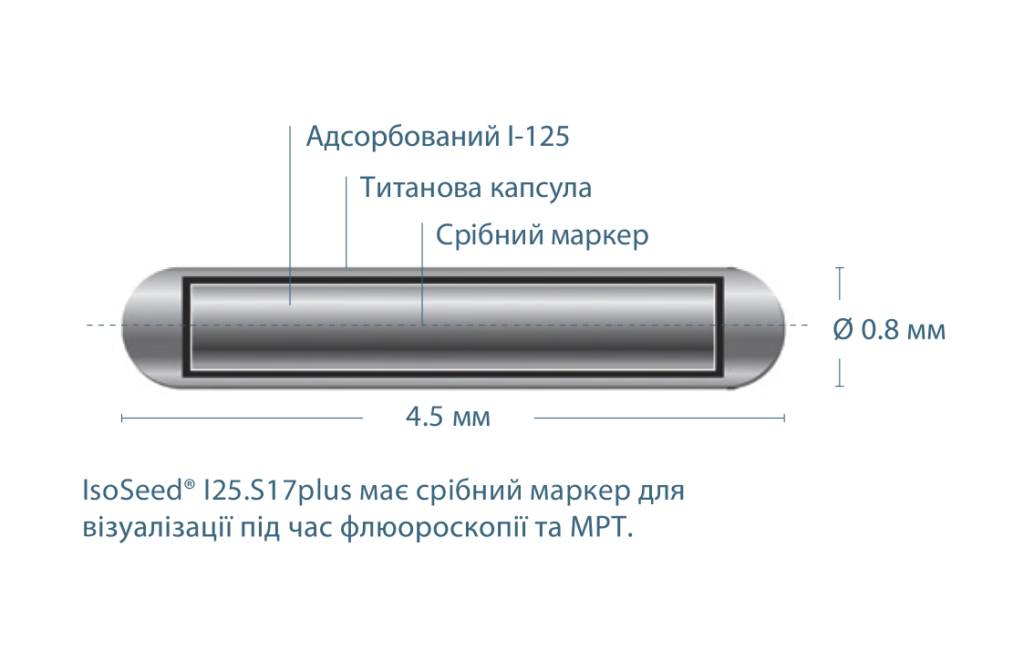

IsoSeed® is manufactured to unprecedented quality standards. Available with a gold (IsoSeed® I25.S06) or silver (IsoSeed® I25.S17plus) radiographic marker, the very design of the Eckert & Ziegler BEBIG I-125 closed source model ensures visibility in ultrasound, fluoroscopy, CT or MRI.
IsoCord®

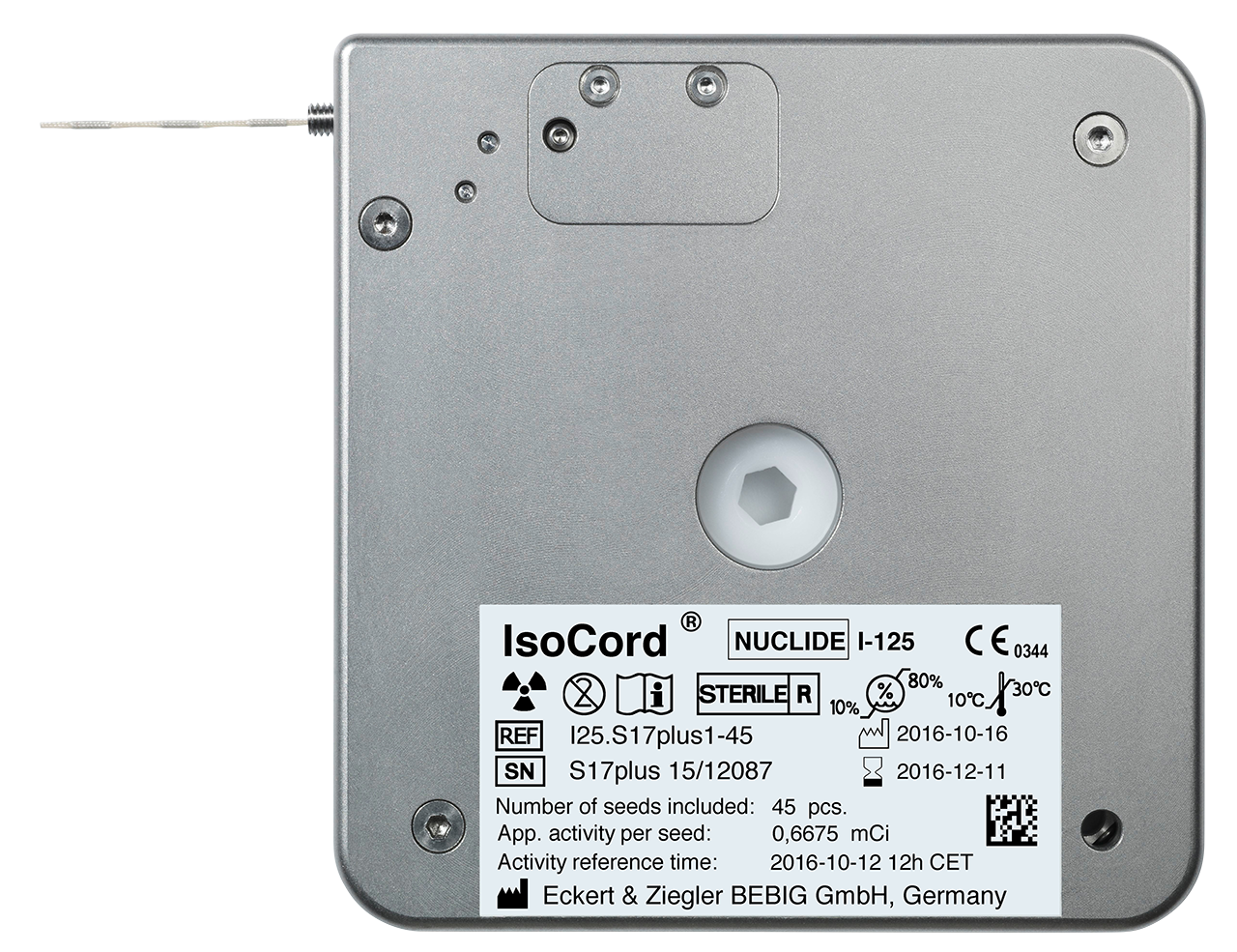

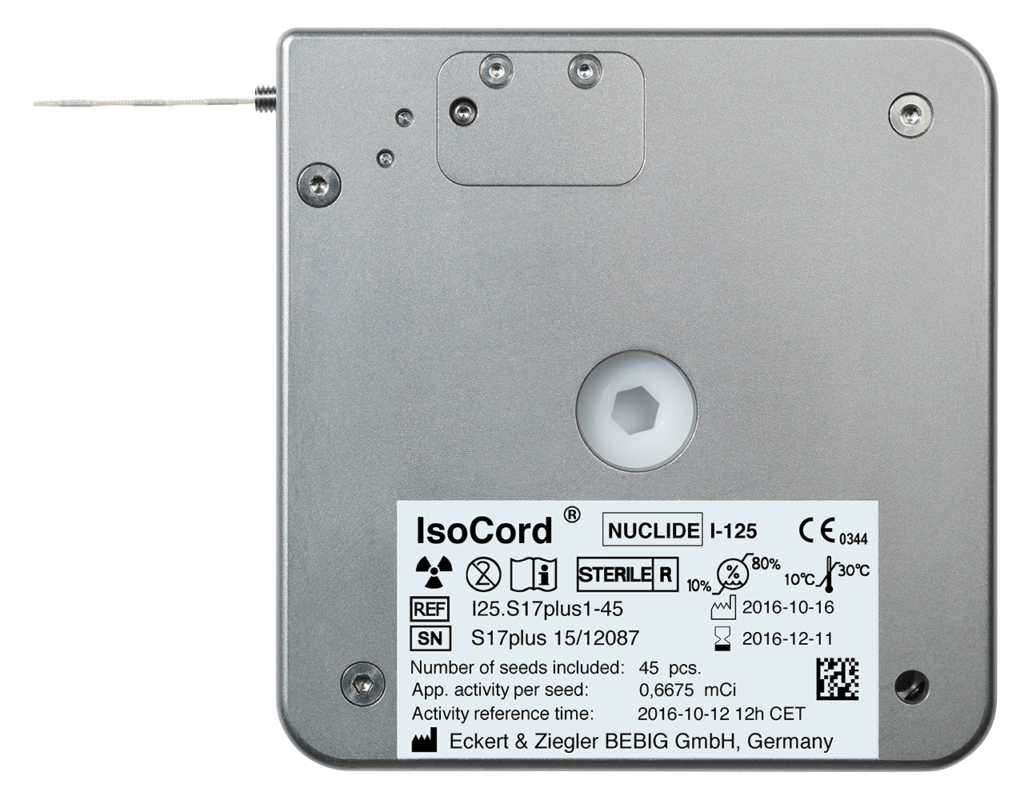

IsaCord® is a source chain containing up to 70 grains and packaged in a radiation shielded cassette. It is composed of grains and separators and has an hourglass shape in a standard grain-separator configuration, secured by a braided monofilament. This special design ensures a secure anchorage in the prostate tissue and helps to reduce grain displacement. The IsoCord® is available with the I25.S06 or I25.S17plus source models.

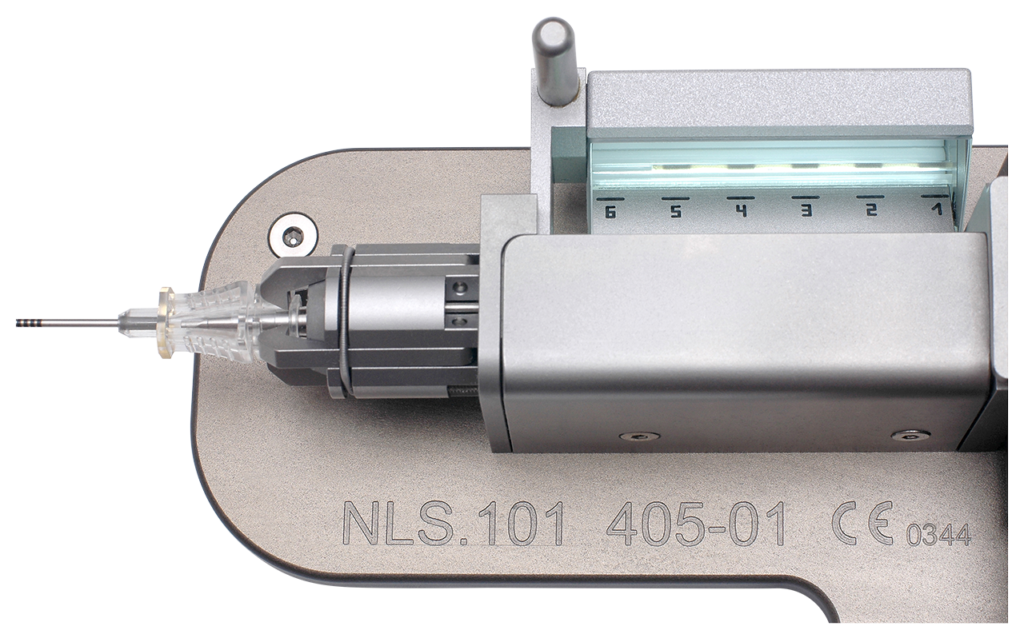

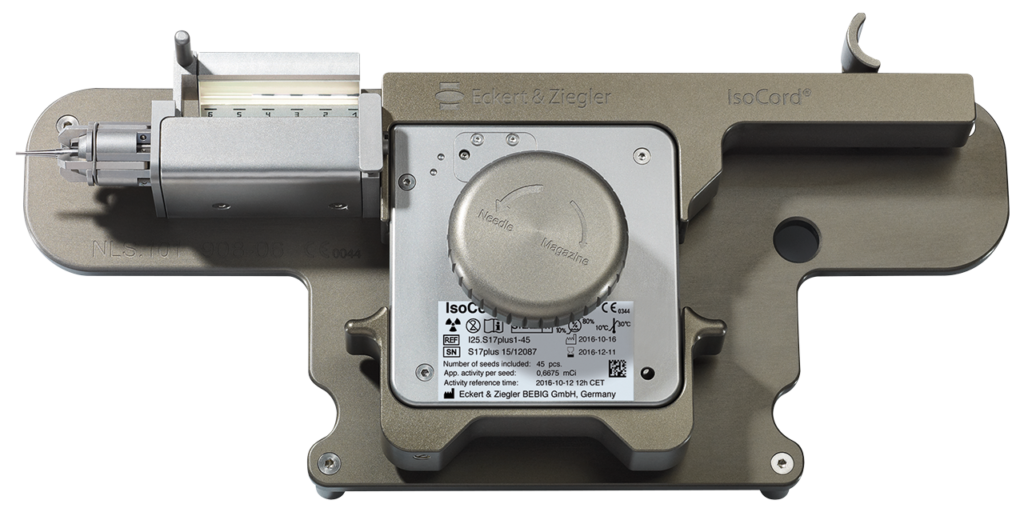

IsoCord® needle charging station
From the IsoCord® needle charging station, the required number of grains is transferred from the cassette to the illuminated positioning unit. The IsoCord® chain is cut to the required length and then loaded into the attached implant needle with integrated mandrel. The process of cutting the chain and loading it into the needle is carried out under full radiation protection, without the need to perform these actions manually.
Source chain in a convenient cassette containing up to 70 grains
Fast intraoperative chain trimming with full radiation protection

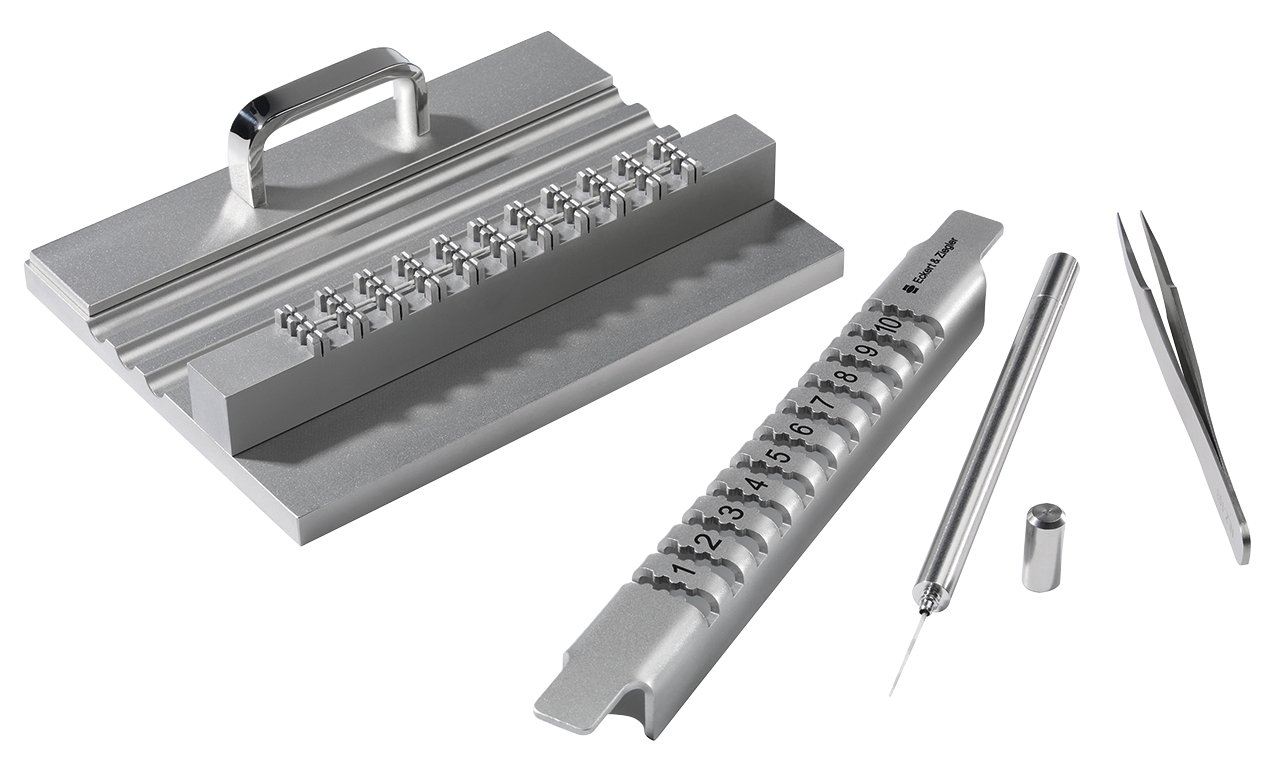

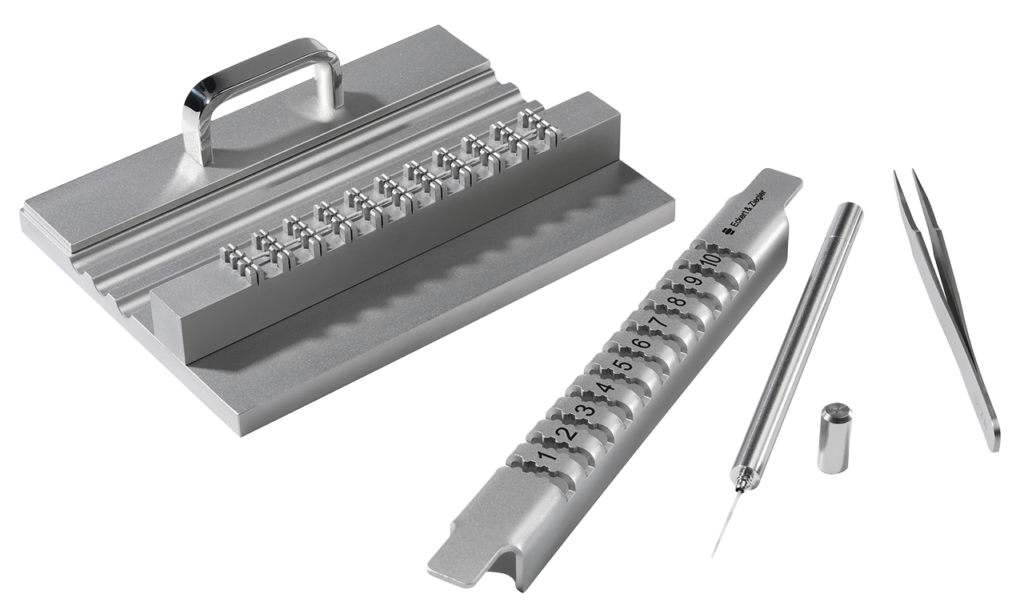

IsoStrand® and the IsoStrand® cutting unit
IsoStrand® consists of 10 IsoSeed sources spaced 1.0 cm apart.
Bioresorbable hourglass-shaped dividers and braided suture material ensure secure thread placement. IsoStrand® is cut under radiation protection with a cutting device.
